Is an Older Wolf L Series Oven Still Worth Fixing?
The L Series is the oldest Wolf built-in line on Wolf's own timelines: 30-inch singles and doubles made from 2001 to 2015, plus the 36-inch SO36U, built until 2020. Wolf Repair Bellevue, (425) 629-0033, tells you on the $89 visit whether yours is a one-part repair and whether that part can still be sourced.
- Written and checked by
- Imogen Fairhurst
- Dated
- Bench speciality
- ovens and calibration
- Years at it
- 12
- Control panel and board
- Cooling-air path behind the panel
- Broil element
- Temperature sensor
- Convection fan behind its cover
- Bake element (often hidden below the floor)
- Door gasket
- Self-clean door lock
- Door hinges
What fails on it

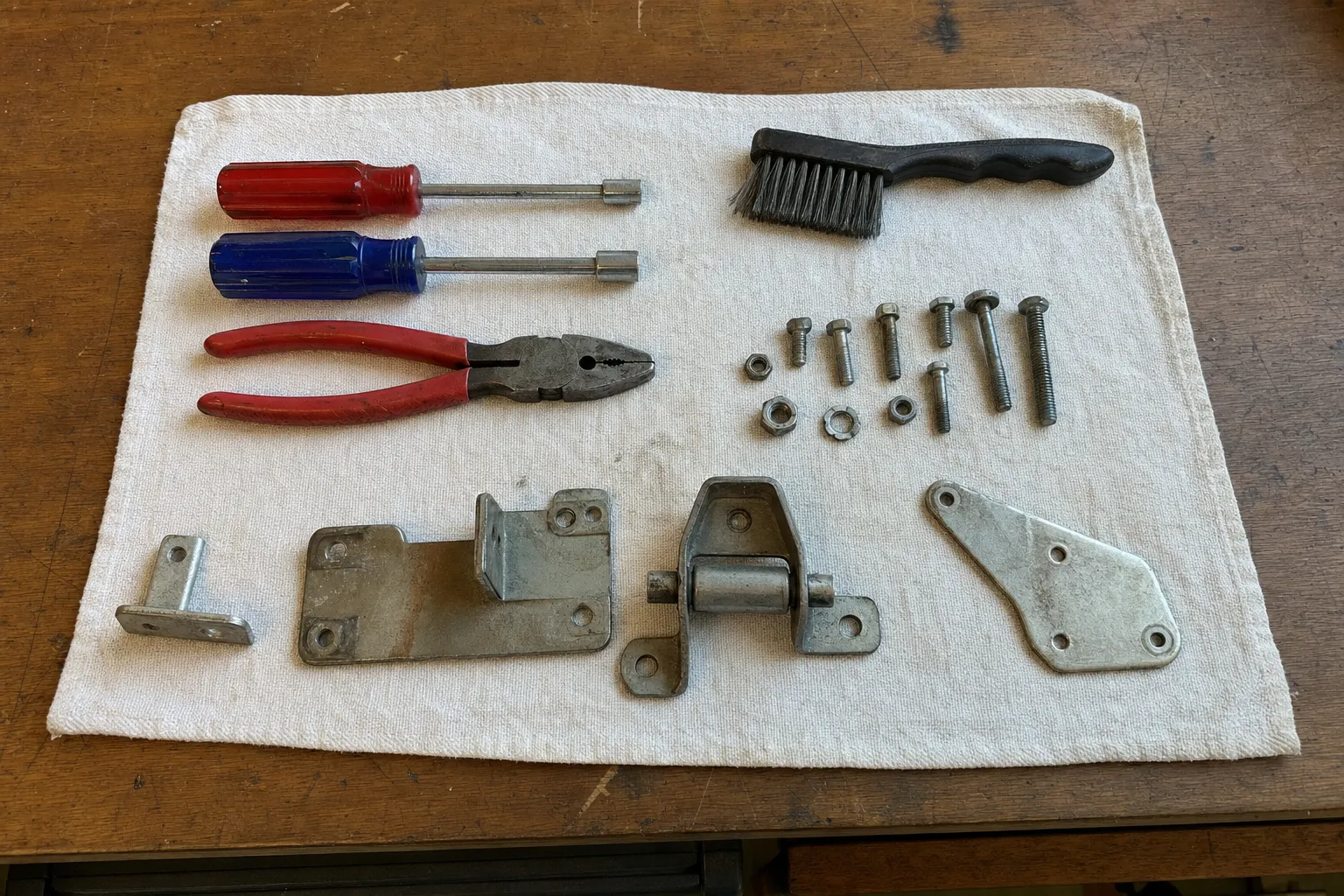

- Worn door hinges Years of opening and closing wear the hinges, so the door drops, shuts unevenly or eases open a little. Heat leaks out along the edge and bakes slow down.
- Flattened gasket A gasket that has gone flat or torn lets heat escape. Wolf's L Series guide says not to clean or rub the gasket at all, because moving it can break the seal.
- Sensor off true After many years of heat cycles the sensor can read wrong, and a setting that once gave a good result now undercooks or overcooks.
- Dual convection fans Wolf lists dual convection fans on the L Series. A worn motor grinds, slows or quits, and convection results turn uneven while plain bake still works.
- Self-clean door lock The door locks during self-clean and lets go once the oven has cooled. One that sticks shut, or never engages, can be repaired; do not pry it open.
Models in this series
| Model | What it is | Built |
|---|---|---|
| SO30F/S | 30" single | 2001–2015 |
| SO30U/S | 30" single | 2001–2015 |
| DO30F/S | 30" double | 2001–2015 |
| DO30U/S | 30" double | 2002–2015 |
| DO30U/P · DO30U/B | 30" double | 2002–2010 |
| SO36U/S | 36" single | 2002–2020 |
| SO36U/P · SO36U/B | 36" single | 2002–2010 |
Designations and years from Wolf's model timeline for this line.
What the L Series is
Wolf’s timeline describes the L Series as legacy models that are no longer produced. The 30-inch single and double ovens were built from 2001 to 2015, and the 36-inch SO36U lasted until 2020; the table above lists every designation. Its use and care guide also lists a temperature probe and a rotating control panel alongside the dual convection fans.
If your Bellevue kitchen still has the wall oven it was fitted with in the early 2000s, there is a fair chance it is one of these. The plate below the control panel on the right will settle it.
The repair-or-retire test
Three questions decide it. Is the fault one part rather than several? Can that part still be sourced for your serial number? Are the cavity, door glass and wiring otherwise in good order? Three yeses make a repair the sensible call, priced from a band before any work. Two expensive failures at once on an oven this age is where we will tell you the sums have turned.
Marks in the porcelain
Wolf’s guide explains that the porcelain lining can chip or show fine lines as the oven heats and cools, especially with self-clean. That is cosmetic, not a fault, and no reason on its own to replace the oven. Foil on the oven floor, which the same guide rules out, does real damage to it.
Common questions
- How do I know my oven is L Series and not an earlier E Series?
- Look for a "-2". SO30F/S, SO30U/S, DO30F/S and DO30U/S are L Series. SO30-2F/S and DO30-2U/S, with the "-2", are earlier E Series ovens made from 2007. For either kind, open the door and look under the control panel, toward the right-hand side, where the plate is fixed.
- What happens if the part my L Series needs cannot be found?
- Then you hear it at the diagnosis, before any other charge. The choice becomes replacing the oven or, where the fault is safe to live with, carrying on without that function for now. Wolf Repair Bellevue, (425) 629-0033, tells you plainly which of those applies to your oven and why.
- Is the 36-inch L Series oven any different to repair?
- The faults belong to the same family, but more rides on the answer. Wolf's current built-in oven timelines list no 36-inch model, so a failed SO36U cannot simply be swapped for a newer Wolf of the same width. A sound repair is worth more on that oven than on a 30-inch one.
